G.A.S Fan Controller’s

Precision Control of Both AC and EC Fans

The AC-EC Controller will get the best out of any duct fan, regardless of whether it uses AC technology or a newer, more sophisticated digital motor. The AC-EC will regulate fan airflow rates according to temperature AND humidity levels, with different settings for day and night, allowing you to get your environment spot-on at all times of the day.

    • Global Air Supplies – the kings of ventilation
    • Can run older AC fans and digital EC fans at the same time
    • Regulates fan speeds according to temperature AND humidity levels
    • Allows you to choose different settings for daytime and night-time
    • Automatically senses daytime and night-time periods
    • Helps to control high humidity levels, making it great for those with powdery mildew and botrytis
    • Heavy-duty – capable of handling a load of up to 10 amps (5 amps for each AC socket)
Read More...

Contains

1 x GAS AC-EC Fan Controller



How the AC-EC Fan Controller Works

If you’ve just upgraded to a newer, more efficient EC extraction system, but you still have an AC intake, then the AC-EC Fan Controller is exactly what you need. It comes with two sockets that can handle a generous 5 amps each: one for your intake and one for your extraction system. And you can regulate EC fans at the same time by connecting them to the unit using controller cables.

However, having the flexibility to combine different fan types isn’t the only thing that this amazing little piece of kit offers. The AC-EC offers additional functionality over other controllers by allowing you to choose different settings for daytime and night-time. Plants have different requirements for light and dark periods; when photosynthesising, many popular indoor-grown plants flourish at around 25 degrees Celsius. During darkness, overall growth rates are enhanced when the temperature drops down to around 18 degrees. Most other fan speed controllers cannot account for this fact, but the AC-EC is equipped for the job! A light sensor is built into the probe, so you don’t have to worry about programming in lighting periods, because this is taken care of for you. The team at G.A.S. have thought of everything…

But it gets better. Whereas most controllers only factor in temperature, the AC-EC also pays attention to the humidity levels in the room, increasing airflow rates if levels get too high. High humidity levels can lead to issues with botrytis (rot) and powdery mildew – two conditions that can cause absolute devastation. Ask any grower who’s ever lost a big chunk of their harvest to mould and they’ll tell you that excess humidity is something that you need to avoid at all costs.

Please note that the AC-EC Controller is not compatible with Hyper Fans.

How to Use AC-EC Fan Controller Works

The AC EC Controller can handle a total load of up to 10 amps which should be spread over no more than 5 amps for each socket. This is more than enough to accommodate even the largest fans. A 5 amp capacity allows for a total of 1150 watts on each socket (5 x 230 volts). To give you some perspective, a 12-Inch Stratos (with an airflow rating 3812m3/hr) uses 332 watts of power, or 1.44 amps. EC fans are not powered by the fan speed controller; they are connected via controller cables, so they do not need to be factored into the total load. Follow the included instructions for more info on programming settings.

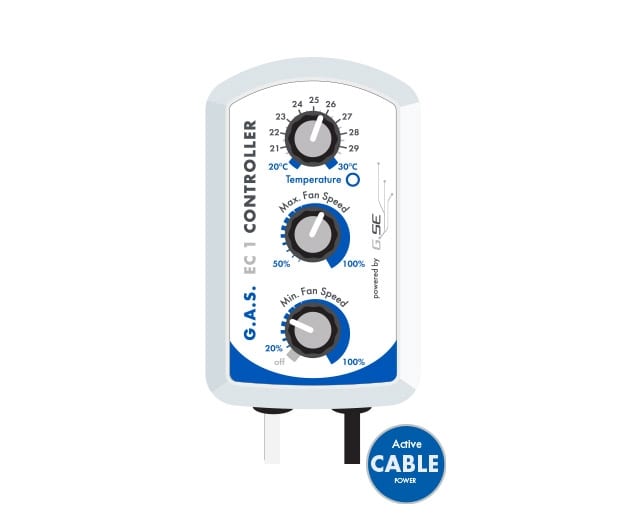

The GAS EC1 thermostatic speed controller is the perfect way to control your outtake EC fans.
With a minimum and maximum speed control and powered from the fan, there is no need for a power pack.

Temperature control your fan
Set maximum fan speed to reduce running costs and reduce noise
Set minimum fan speed.
Keep air fresh and CO2 rich
Plugs directly onto Systemair’s EC fan range
Must be used with Active Cables



The G.A.S. Digital EC Fan Controller is an essential part of a Systemair Revolution Vector EC fan set-up. Together, they represent the most advanced extraction system on the market. Unlike other duct fans, Vectors have been engineered from the ground up for use in the hydroponics industry, after years of intensive research and development. They have ridiculously powerful digital motors and they’re very quiet relative to the volume of air they move (though not ‘silent’ as some would claim). This controller will regulate fans at airflow levels between 1% and 100% with no buzzing or humming, responding to the conditions in the room with pinpoint accuracy. See the video below for more info.

No more humming or buzzing sounds!
Easily pays for itself by drastically reducing energy costs
Ridiculously powerful electronically commutated (EC) motor
Plugs directly into Vector EC fans
Highly energy efficient system
Maintains an optimal grow room climate
Precise climate control – regulates fans from 1% output to 100%
Features reactive temperature technology
Switches between Fahrenheit and Celsius

£75.00£250.00

SKU: N/A Category:

Available Options:
